Multiple Spec Z17 Shaft Locking Devices Clamping Elements/Shrink Disk

Advantages

1. The use of shaft locking devices makes the manufacture and installation of mainframe components simple. The machining of the shaft and hole for the installation of the shaft locking devices does not require high precision manufacturing tolerances as in the case of interference fits. No heating, cooling or pressurising equipment is required for the installation of the shaft locking devices, the bolts are simply tightened to the required torque. The hub can be easily adjusted to the required position on the shaft. The shaft locking device can also be used to join poorly welded parts.

2, long life and high strength of the shaft locking device. The shaft locking device relies on friction transmission, there is no keyway weakening of the coupled parts, and there is no relative movement, so there is no wear and tear in the work.

3,The shaft locking device will lose the coupling when it is overloaded, which can protect the equipment from damage.

4,Shaft locking device coupling can withstand multiple loads, its structure can be made into a variety of patterns. According to the size of the installed load, more than one shaft locking device can be used in series.

5,The shaft locking device is easy to disassemble and has good interchangeability. As the shaft locking device can be combined with a large gap between the shaft and hub, the bolt will be loosened when disassembled, so that the jointed parts can be easily disassembled. When the expansion is tight, the contact surface is close to the billion fits without rust but is also easy to disassemble.

Basic Dimensions and Parameters of Z17 Clamping Elements/Shrink Disk

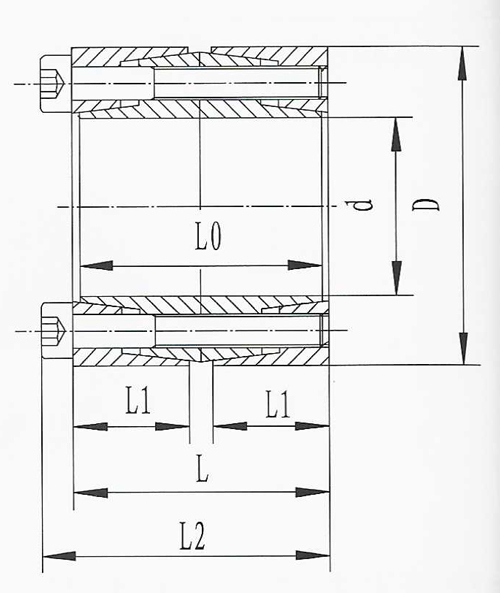

Diagram of Z17 Clamping Elements/Shrink Disk

Typical Application

FAQs

Q1: Are you manufacturer or trading company?

A1: We are manufacturer with more than 10,000 square meters plant.

Q2: Will you provide free samples?

A2: Yes, we will provide free sample for customer to test.

Q3: Can you make CNC machining parts according to our drawings?

A3: Yes, we can make the parts according to your drawings.

Q4: Can you make CNC machining parts according to samples?

A4: Yes, we can make the parts according to your samples.

Q5: Which shipping method will you use for delivery?

A5: It depends on customer. Our price is based on FOB, customer needs to afford the shipping. But we are happy to help based on request.

Q6: What’s your payment terms?

A6: We accept T/T, Western Union, Money Transfer, TAAJ, etc.

Sichuan Xintiecheng Machinery Co., Ltd. is a high-end industrial parts manufacturer founded in 2016. The company is committed to high-end components research&development and production. With years of development, now we have advanced manufacturing equipment, superb processing technology, complete detection technology, more than 6,000 square meters plant, more than 1,000 square meters factory office, and over 200 square meters sales center in Chengdu. There are machining center, and dozens of CNC lathes and CNC gear hobbing machine. Now the company has more than 100 staff, including professional R & D and technical team, striving to provide high precision and high quality products for customers.

The company's main business is to process high-precision industrial parts and components for domestic and oversea customers involve in the field of industrial automation equipment, elevators, machine tools, aerospace, petroleum equipment, medical machinery, servo motors, robots, etc. Our customers are all world-renowned companies in their industries, and whose factories are located in the United States, Japan, Korea, China and other countries. Relying on the first-class quality and cost-effective products, we participate in customer sample development, trial production, small batch, and final batch supply with fast and excellent service, and win fine reputation among customers.

With the goal of manufacturing high-end precision components, and belief of integrity, quality, service, and win-win business, we are pursuing best quality and excellent service.
