Multiple Size Z13B 41Cr4 Shaft Locking Assemblies

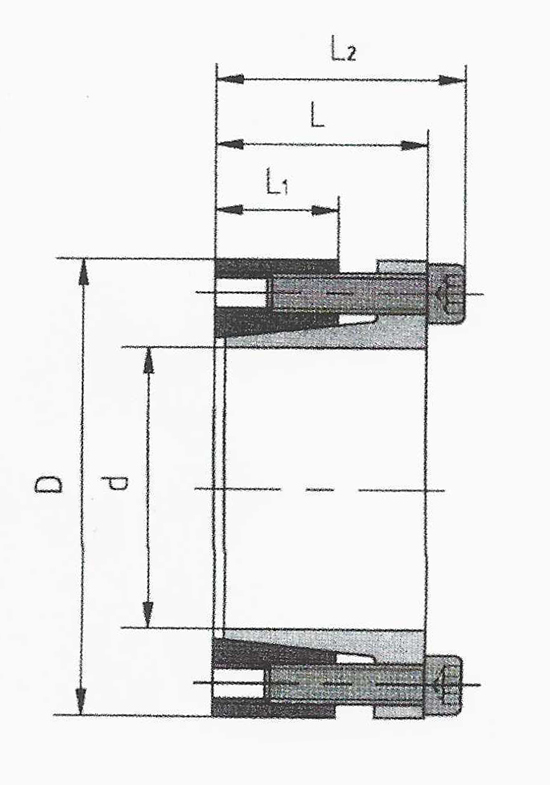

Diagram of Z13B Shaft Locking Assemblies

Advantges

1. The use of shaft locking assemblies makes the manufacture and installation of main machine parts simple. The processing of the shaft and hole for installing the expansion sleeve does not require high-precision manufacturing tolerances like the interference fit. There is no need for heating, cooling or pressurizing equipment when installing the expansion sleeve, just tighten the bolts according to the required torque. The adjustment is convenient, and the hub can be conveniently adjusted to the desired position on the shaft. The expansion sleeve can also be used to connect parts with poor weldability.

2. The shaft locking assemblies have a long service life and high strength. The expansion sleeve relies on friction transmission, and there is no keyway weakening to the connected parts, and no relative movement, so there will be no wear during work.

Mounting

The shaft locking devices can be divided into single tapered shaft locking devices, step shaft locking devices, double tapered shaft locking devices, and hydraulic shaft locking devices four kinds, installed to the shaft to learn after the degree of tightening can be, must be removed from the top hole bolt. It uses when we pass this high-strength bolt role. Axial force, the relationship between the outer ring and the profile data produces a huge holding force, the top of the disassembled parts can be loosened to control, and then use the hexagonal spanner to screw the appropriate top hole bolt into the disassembly hole, the top of the disassembled parts can be loosened to signal.

Basic Dimensions and Parameters of Z13B Shaft Locking Assemblies

Main Manufacturing Equipment

Main Testing Equipment

Typical Application

FAQs
