    Expanding Hub Shaft Locking Device 100x145x75 Silver Z9 Keyless Locking Assemblies

    Z9 41Cr4 Shaft Locking Device Expanding Hub


    Overview


    Expanding hub is an advanced basic component widely used for mechanical coupling under heavy loads in the world today. In the coupling of wheel and shaft, it is produced by tightening high-strength bolts to make the containment surface A keyless coupling device that realizes load transmission by pressure and friction.


    Basic Dimensions and Parameters of Z9 Expanding Hub


    Size (mm)Dimensions (mm)Rated LoadContact PressureLocking Screws (G.12.9)

    Approx Weight

    (KG)

    d x D x LL1L2Axial (KN)Torque (N.m)Shaft (Mpa)Hub (Mpa)Tightening (N.m)

    100x 145x 75

    110x155x75

    120x 165x75

    61

    61

    61

    54

    54

    54

    192

    191

    216

    9600

    10500

    13000

    102

    93

    96

    70

    66

    70

    145

    145

    145

    4.70

    5.10

    5.50

    130 X 180 X 84

    140x 190X 84

    150 X 200 X 84

    68

    68

    68

    63

    63

    63

    287

    287

    287

    17800

    20200

    21600

    100

    94

    88

    78

    69

    66

    145

    145

    145

    7.50

    7.90

    8.40

    160 X 210 X 84

    17 0x 225 X 84

    180 x 235 X 84

    68

    68

    68

    63

    63

    63

    36

    383

    431

    28800

    32600

    38800

    101

    101

    108

    77

    76

    82

    145

    145

    145

    8.90

    10.5

    11.0

    190 x 250 X 94

    200 X 260 X 94

    220 x285 X 94

    77

    77

    77

    69

    69

    69

    493

    526

    640

    46800

    52800

    70000

    106

    100

    119

    80

    77

    92

    230

    230

    355

    14.3

    15 .0

    17 8

    240 X 305 X 112

    260 X 325 X 112

    280 X 325 X 120

    93

    93

    99

    86

    86

    94

    731

    822

    910

    88000

    107000

    128000

    96

    103

    96

    75

    82

    75

    355

    355

    355

    23.2

    24.8

    33.0

    300 x 375 x 120

    320 X 405 X 142

    340 X 425 X 142

    99

    121

    137

    94

    109

    109

    1000

    1280

    1420

    151000

    206000

    242000

    99

    101

    106

    79

    80

    85

    355

    690

    690

    36.0

    52.0

    54.0

    360 X 455 X 159

    380 X475 X 159

    400 X 495 X 159

    137

    137

    137

    120

    120

    120

    1770

    1770

    1770

    319000

    337000

    355000

    113

    109

    101

    89

    87

    83

    930

    930

    930

    72.0

    75.0

    78.0

    420 X 515 X 15913712019804100001078793082.0

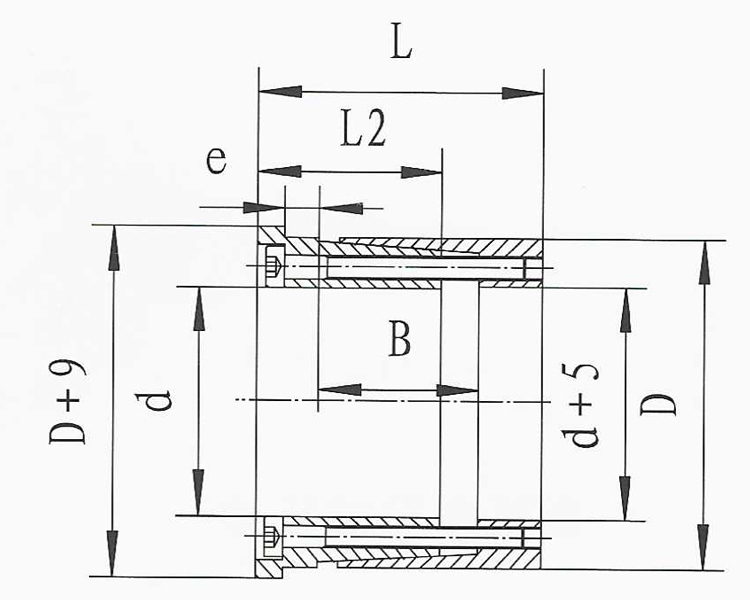

    Z9 Expanding Hub Diagram


    Installation Note

    The shaft locking device should be tested before coupling to ensure that there are no other impurities on the surface of the product, preferably cleaned in special oil and coated with lubricant for backup; then expand the sleeve into the connection hole to ensure that the tightened screws are placed smoothly and the whole process ensures that the shaft locking device Maintain a horizontal position to prevent tilting; external parts such as gears and sprockets that match the shaft locking device should be tightened with a spanner, i.e. the installation is complete.

    The dismantling process of the shaft locking device is relatively simple, first loosen the screws to remove the galvanised screws, using a cover plate to protect against rusting, and then tap the expansion of the transmission parts to remove the shaft locking device, the whole process requires control of reasonable strength to prevent the shaft locking device deformation and jamming

    Our Factory



    Applications


    Expansion sleeves can be used for a variety of large machines.




    FAQs


    Q1: Are you manufacturer or trading company?

    A1: We are manufacturer with more than 10,000 square meters plant.


    Q2: Will you provide free samples?

    A2: Yes, we will provide free sample for customer to test.


    Q3: Can you make CNC machining parts according to our drawings?

    A3: Yes, we can make the parts according to your drawings.


    Q4: Can you make CNC machining parts according to samples?

    A4: Yes, we can make the parts according to your samples.


    Q5: Which shipping method will you use for delivery?

    A5: It dethe pends on customer. Our price is basedthe on FOB, customer needs to afford the shipping. But we are happy to help based on request.


    Q6: What’s your payment terms?

    A6: We accept T/T, Western Union, Money Transfer, TAAJ, etc.
