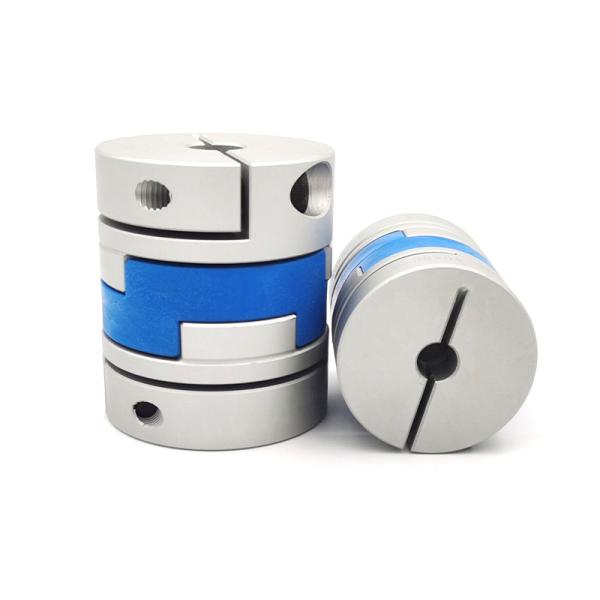

Customized Aluminum Alloy Shaft Coupling Floating Coupling​

Overview

Floating coupling is suitable for connecting two shafts without backlash slewing transmission. The coupling is composed of a half coupling with two grooves at two ends, an intermediate slider (two convex blocks arranged in a cross shape), a steel ball and two steel balls that are radially balanced by a spring. Paired devices are supported in the tangential holes of the coupling. When the active half coupling rotates, the torque is transmitted to the slider through the support and the steel ball, and then to the driven half coupling through the support. The gap between the steel ball on the slider and the support is determined by the spring. The support is heat-treated, so it will not be crushed by the steel ball. The support can be replaced when it is worn to increase the reliability of the coupling. The size of the torque transmitted by the coupling depends on the outer diameter of the half coupling, the material and the heat treatment process of the steel flow bearing.

Dimensions of Floating Coupling

Introduction

Main Manufacturing Equipment



Typical Application

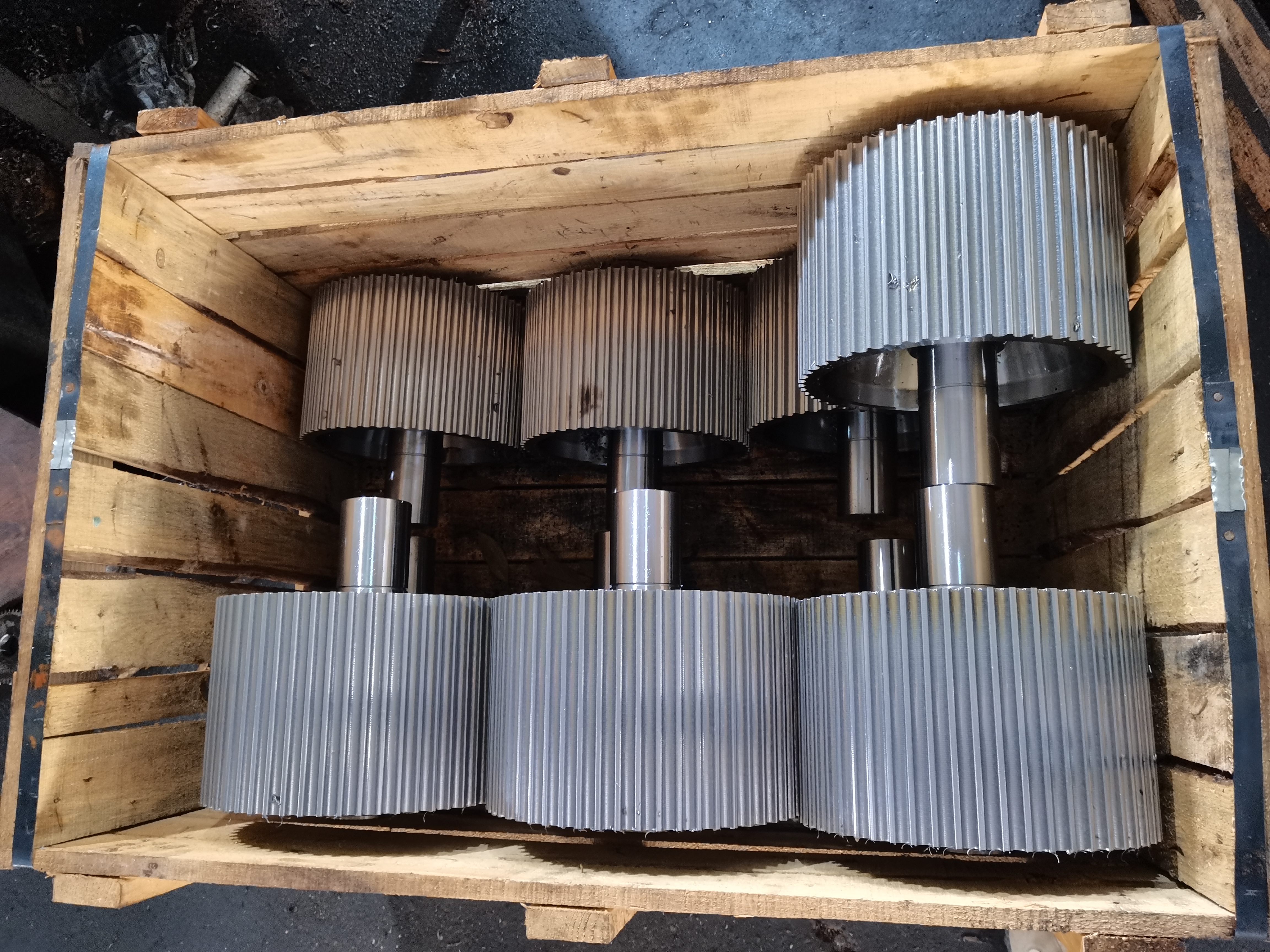

Package

Other Products

FAQs

Q1: Are you manufacturer or trading company?
A1: We are manufacturer with more than 10,000 square meters plant.

Q2: Will you provide free samples?
A2: Yes, we will provide free sample for customer to test.

Q3: Can you make CNC machining parts according to our drawings?
A3: Yes, we can make the parts according to your drawings.

Q4: Can you make CNC machining parts according to samples?
A4: Yes, we can make the parts according to your samples.

Q5: Which shipping method will you use for delivery?
A5: It depends on customer. Our price is based on FOB, customer needs to afford the shipping. But we are happy to help based on request.

Q6: What’s your payment terms?
A6: We accept T/T, Western Union, Money Transfer, TAAJ, etc.

Sichuan Xintiecheng Machinery Co., Ltd. is a high-end industrial parts manufacturer founded in 2016. The company is committed to high-end components research&development and production. With years of development, now we have advanced manufacturing equipment, superb processing technology, complete detection technology, more than 6,000 square meters plant, more than 1,000 square meters factory office, and over 200 square meters sales center in Chengdu. There are machining center, and dozens of CNC lathes and CNC gear hobbing machine. Now the company has more than 100 staff, including professional R & D and technical team, striving to provide high precision and high quality products for customers.

The company's main business is to process high-precision industrial parts and components for domestic and oversea customers involve in the field of industrial automation equipment, elevators, machine tools, aerospace, petroleum equipment, medical machinery, servo motors, robots, etc. Our customers are all world-renowned companies in their industries, and whose factories are located in the United States, Japan, Korea, China and other countries. Relying on the first-class quality and cost-effective products, we participate in customer sample development, trial production, small batch, and final batch supply with fast and excellent service, and win fine reputation among customers.

With the goal of manufacturing high-end precision components, and belief of integrity, quality, service, and win-win business, we are pursuing best quality and excellent service.
